Sidelite & Backlite Combination Bent Glass Tempering

Time:2017-11-06 14:53:39Hits:162

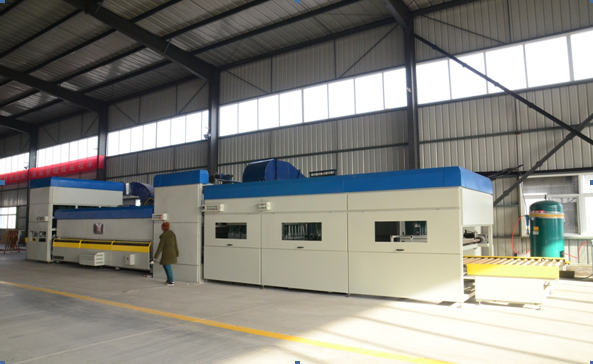

Multi & Single Curvature Bent Glass Tempering Machine is a special plant used to produce the bent tempered glass with multi curvature and single curvature, which mainly used in the fields of rear doors and side doors of automotives, trucks, furniture, etc
Related introduction

1. Machine Application

Multi & Single Curvature Bent Glass Tempering Machine is a special plant used to produce the bent tempered glass with multi curvature and single curvature, which mainly used in the fields of rear doors and side doors of automotives, trucks, furniture, etc. Our customer produced the rear doors and side doors for BMW, Audi, Toyota, Honda, Hyundai, Peugeot, etc.


2. Technical Specification

Model

Single Curvature Tempered Glass (mm)

Double Curvature Tempered Glass Size (mm)

Max. Size

Min. Size

Thickness

Min. Radius

Ma×. Size

Min. Size

Thickness

LV-TB1608L-08V

1600×800

150×⌒250

3.2-6

≥350

1600×800

⌒400×⌒300

3.5-6

LV-TB1612L-08V

1600×1200

150×⌒250

3.5-6

≥550

1600×800

⌒400×⌒300

3.5-6

LV-TB1610L-10V

1600×1000

150×⌒250

3.5-6

≥450

1600×1000

⌒400×⌒300

4-6

LV-TB1615L-10V

1600×1500

150×⌒300

3.5-6

≥800

1600×1000

⌒400×⌒300

4-6

LV-TB1810L-09V

1800×1000

150×⌒300

4-6

≥450

1800×900

⌒400×⌒300

4-6

LV-TB1815L-12V

1800×1500

150×⌒350

4-6

≥800

1800×1200

⌒400×⌒300

4-6

LV-TB2012L-10V

2000×1200

150×⌒350

4-6

≥550

⌒2000×1000

⌒400×⌒300

5-6

LV-TB2016L-12V

2000×1600

150×⌒350

4-6

≥800

⌒2000×1200

⌒400×⌒300

5-6

LV-TB2212L-10V

2200×1200

150×⌒350

4-6

≥550

⌒2200×1000

⌒400×⌒300

5-6

LV-TB2218L-12V

2200×1800

150×⌒400

4-6

≥1000

⌒2200×1200

⌒400×⌒300

5-6
